Clean air starts with the right filter
Your ventilation system can only deliver clean, filtered fresh air if the filter is doing its job. EVOAQ uses purpose-designed filtration to remove airborne particles, protect the ventilation system and help maintain good indoor air quality.
Filter Replacement Guides
Why filtration matters
A ventilation system is bringing outside air into the home. That air can contain fine particles from traffic, smoke, dust, pollen and other sources. The filter is the first line of defence between that incoming air and the living spaces.
Filtration also protects the fan and internal components from accumulating dust. A loaded or poorly maintained filter can restrict airflow, increase fan resistance and reduce system performance.
Choose your EVOAQ filtration
EVOAQ currently uses two filter-box configurations, with three filter or media options available depending on the system and the level of filtration required.

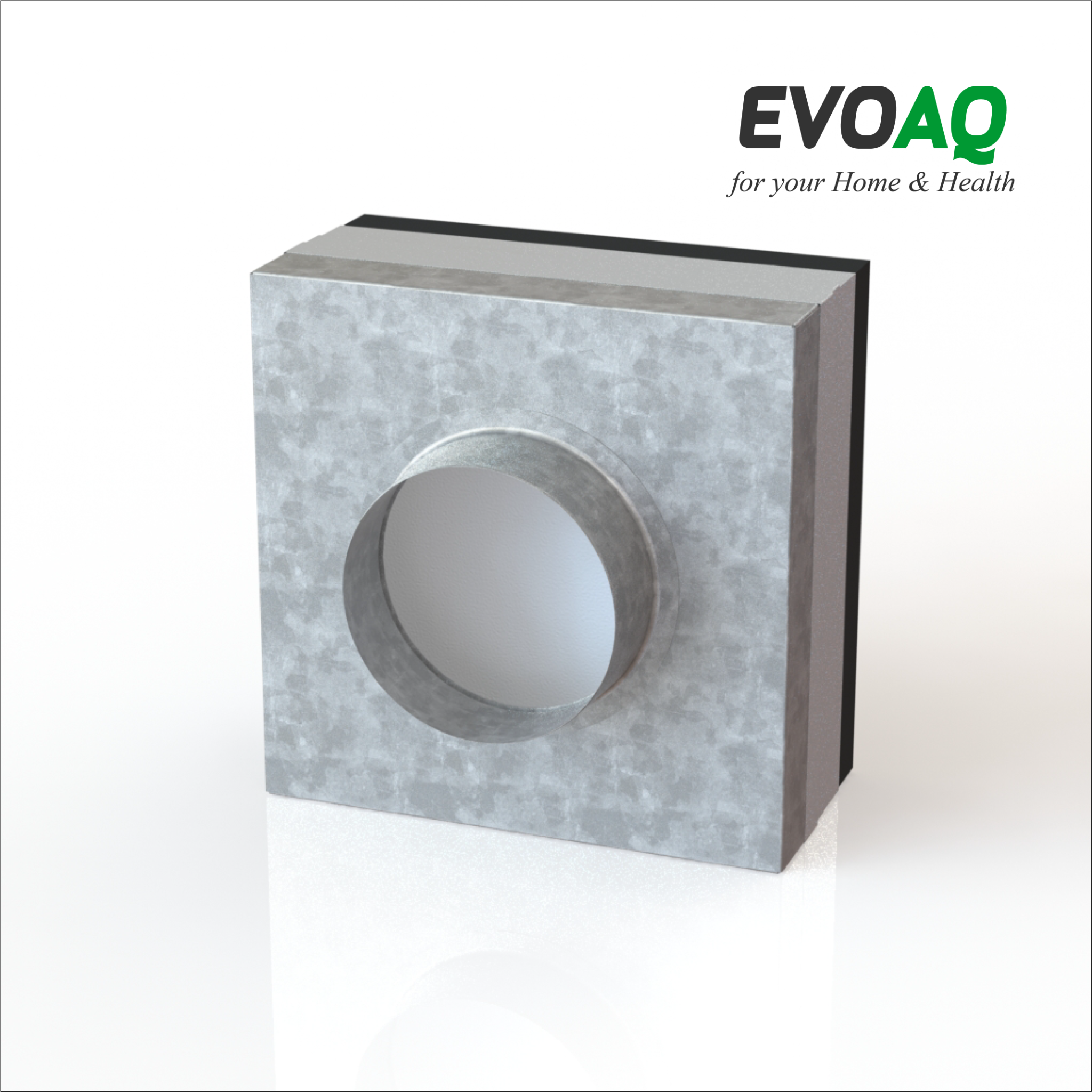

Basic F7 Filter
The basic EVOAQ filter media provides an entry-level filtration option used with compatible EVOAQ ventilation systems.
- F7 filter classification
- Designed for compatible EVOAQ systems
- Replaceable filter media

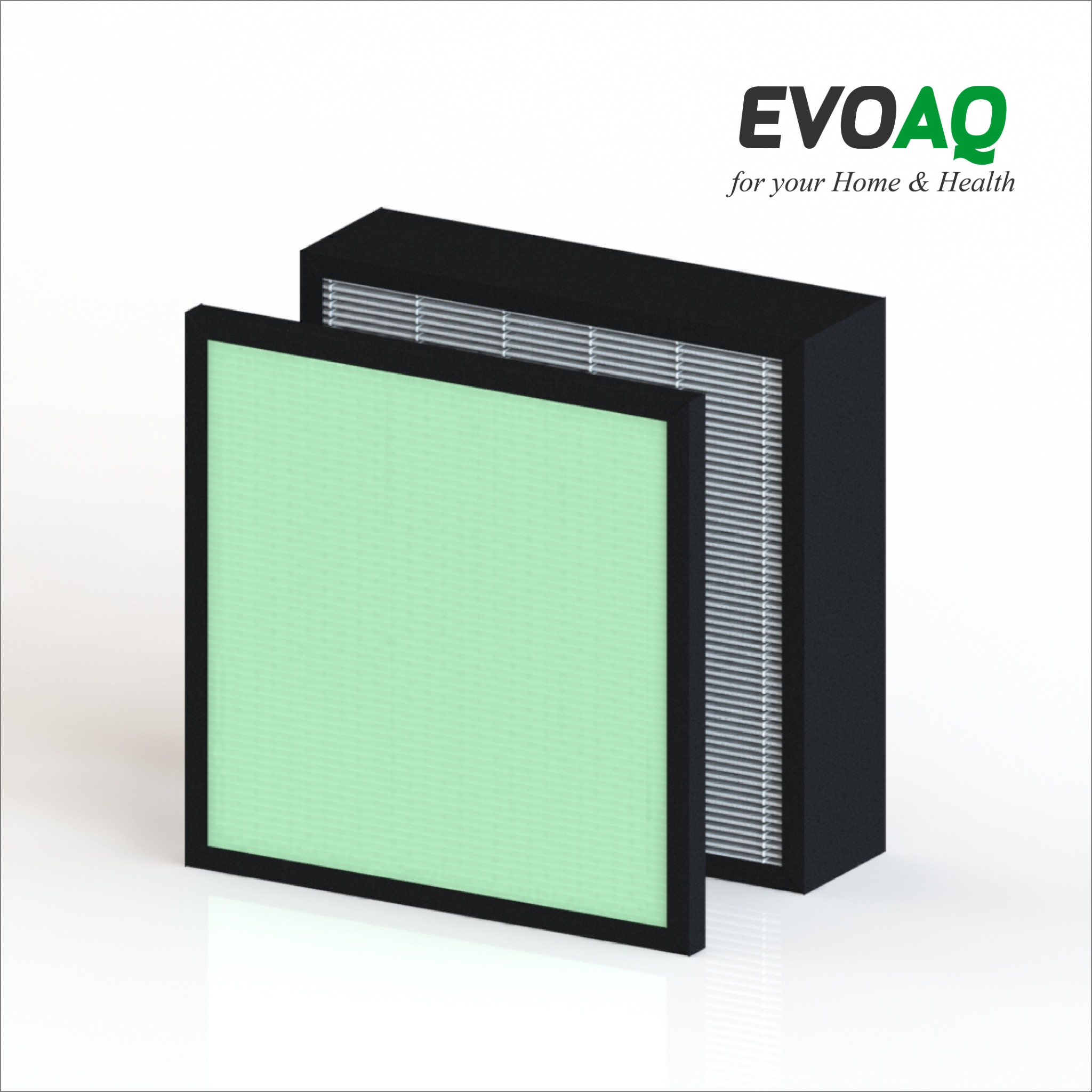

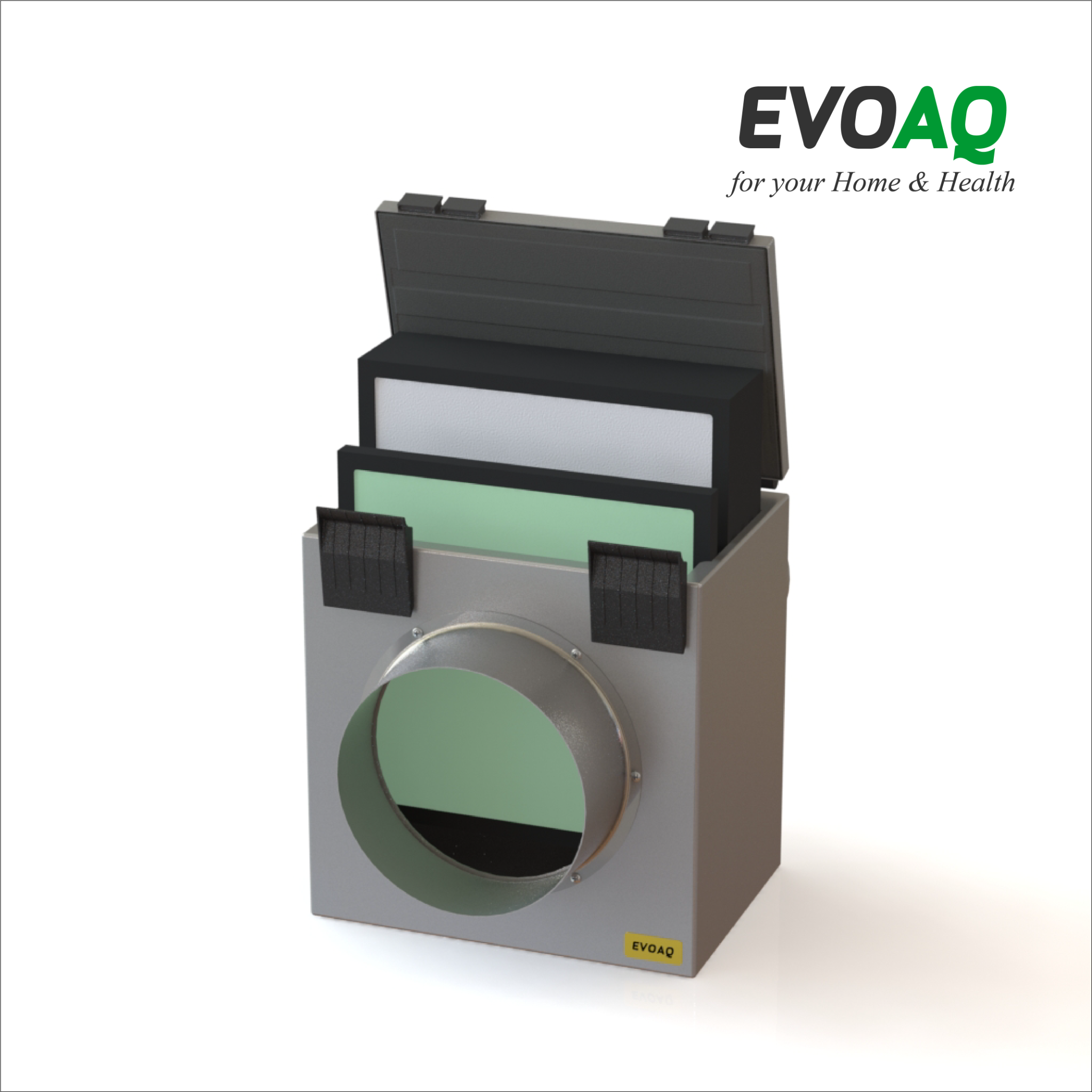

Premium PM2.5 Filter
The EVOAQ Premium Filter Box uses primary PM2.5 filter media specified as F7 equivalent, with a secondary filtration stage.
- Primary PM2.5 filtration — F7 equivalent
- Secondary HEPA or activated-carbon option
- Designed for easy filter replacement
- Helps protect the ventilation system and indoor air quality

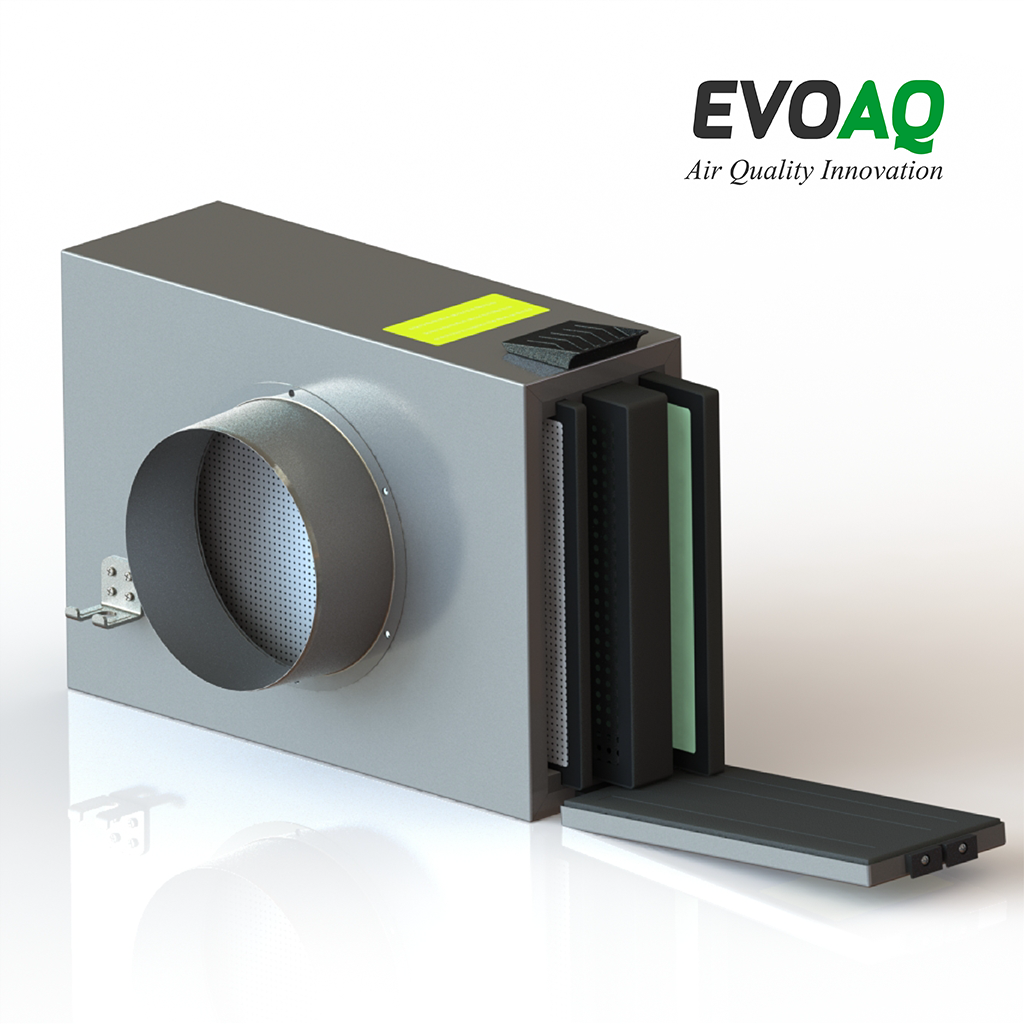

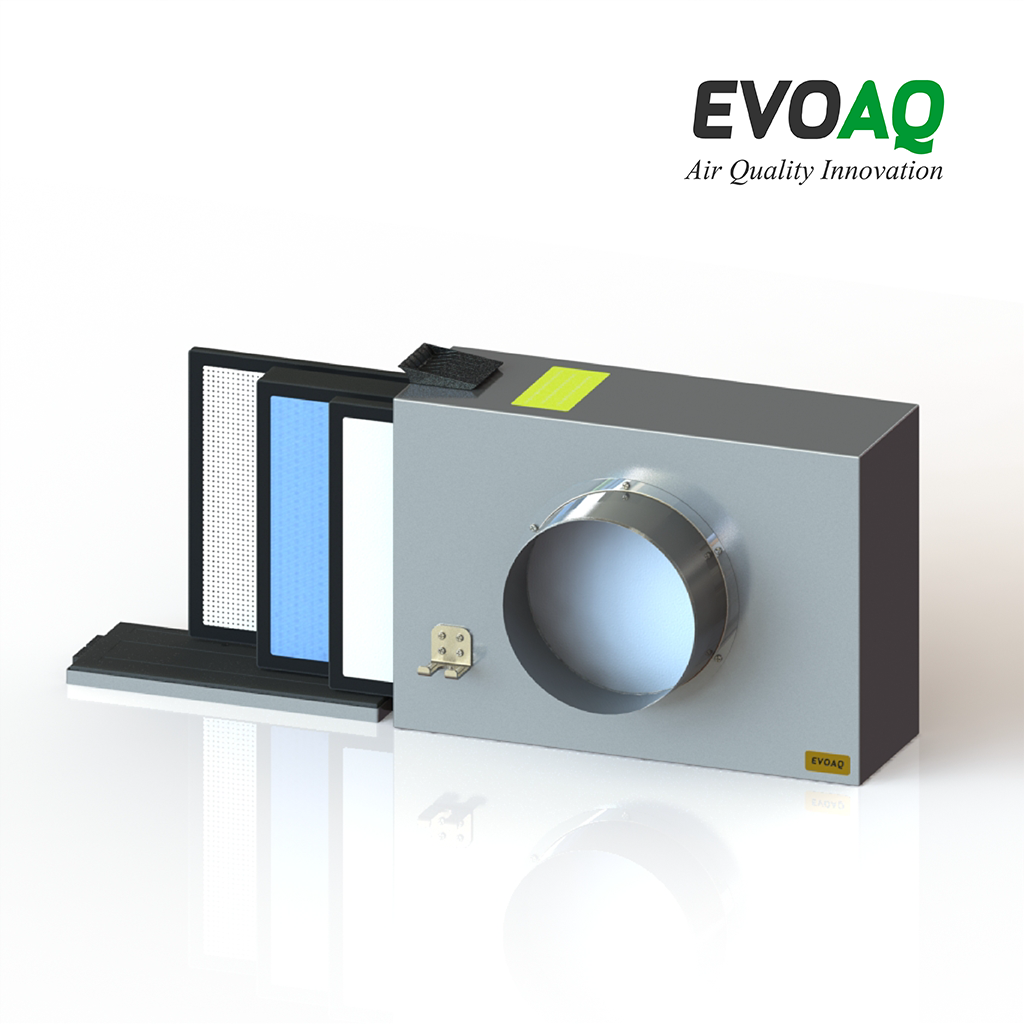

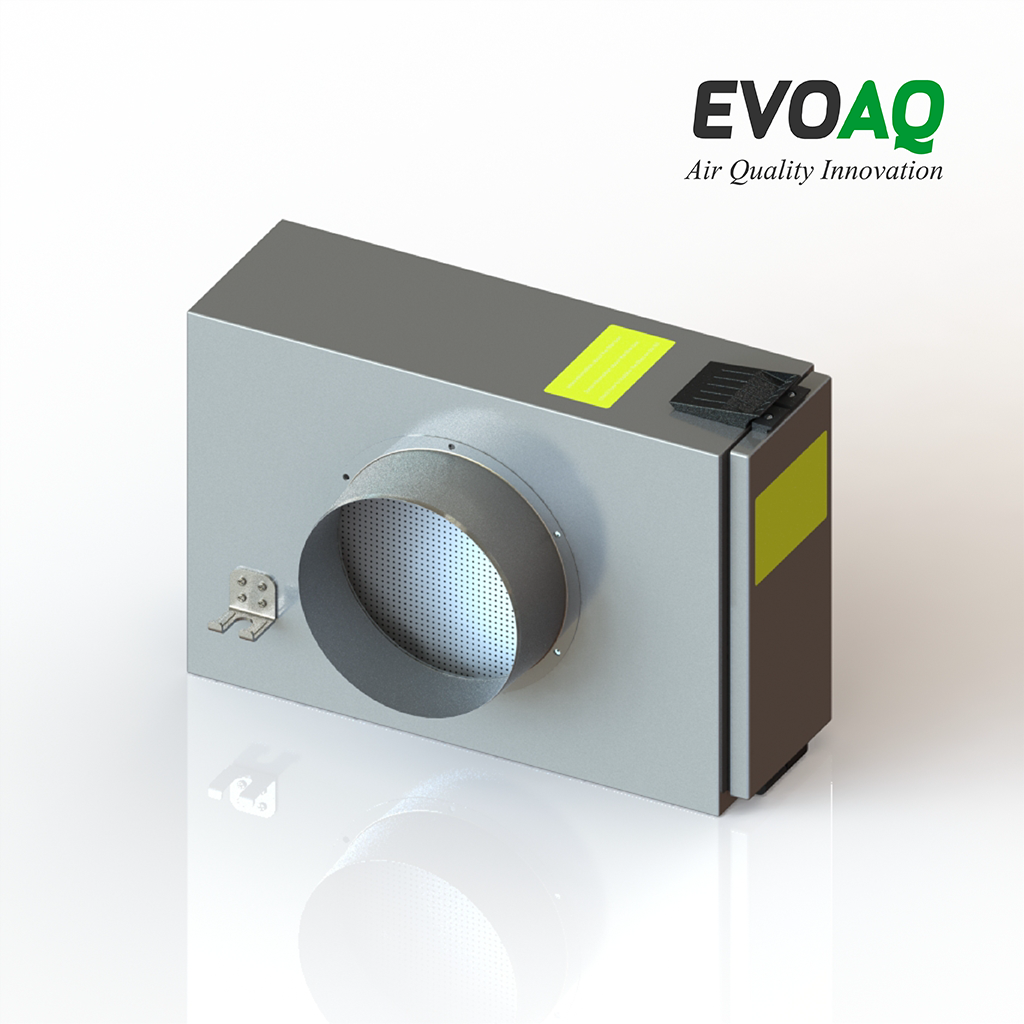

Air Purification Box

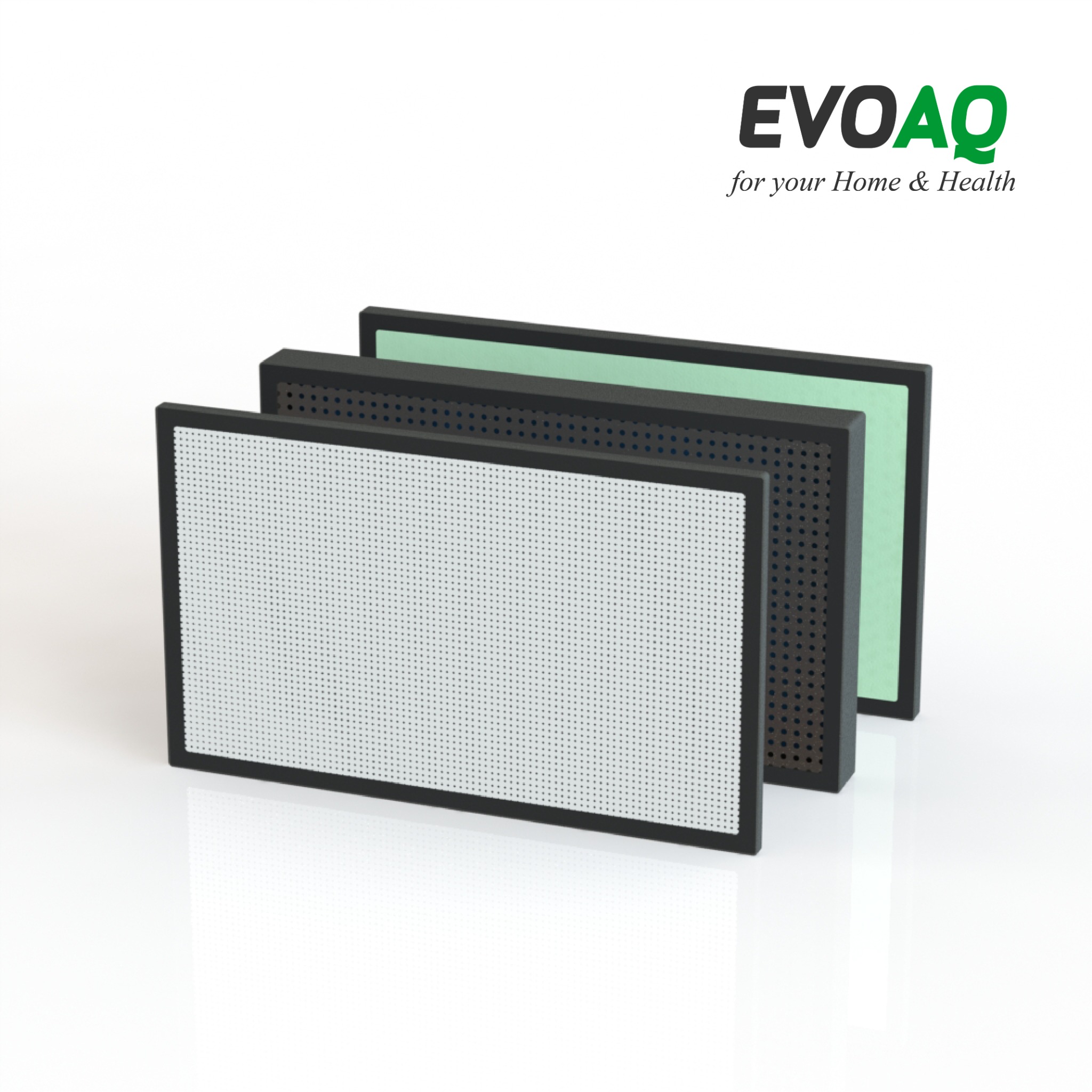

The EVOAQ Air Purification Box adds multiple filtration stages for homes where a higher level of air cleaning is wanted.
- Multi-stage filtration
- Primary PM2.5 and HEPA filtration
- Carbon filtration for gases and odours
- Additional catalyst network stage
- Replaceable filter media
Filter replacement guides

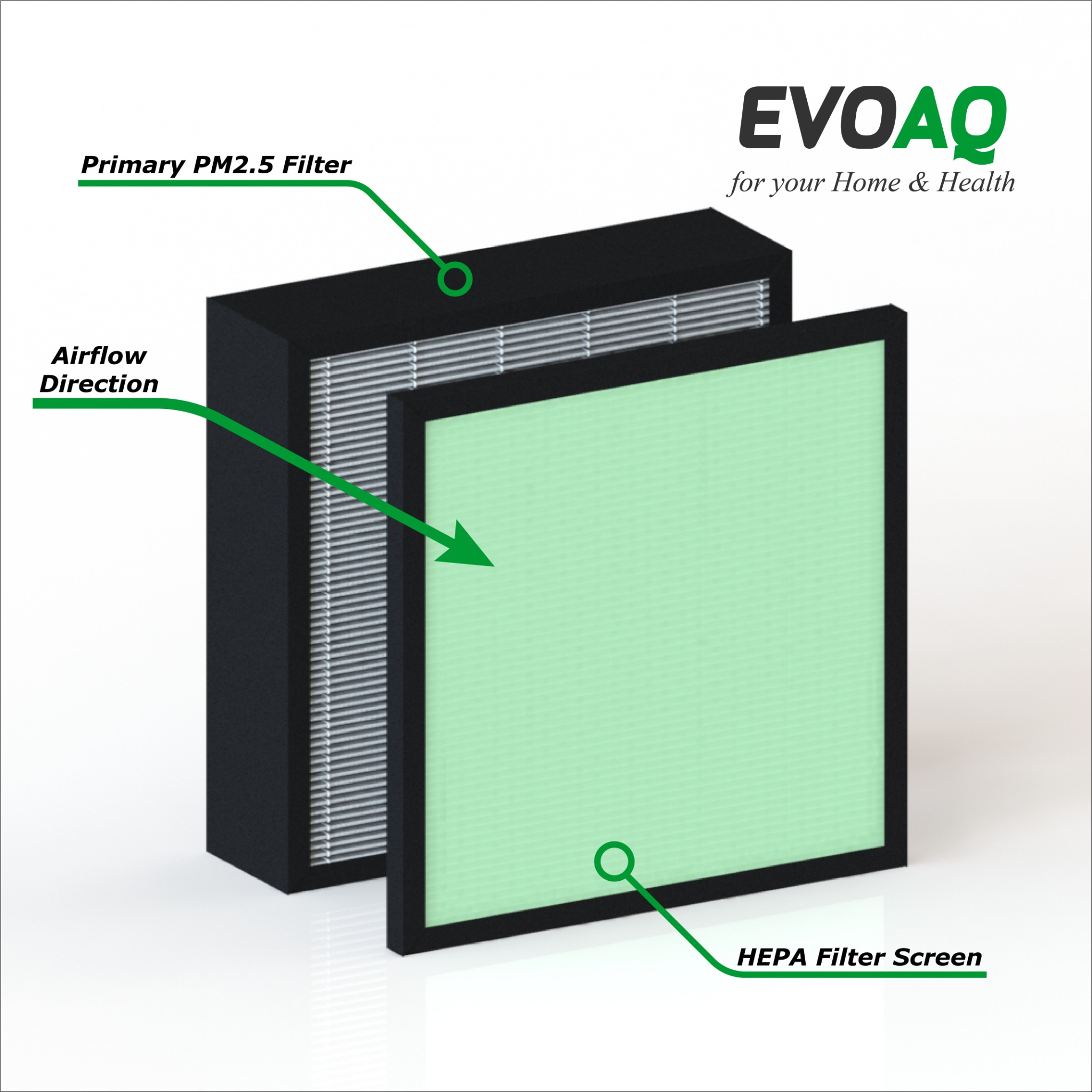

Use the guide that matches the filter or filter media installed in your EVOAQ system. The guides show the correct replacement procedure and airflow direction.
F7 Filter Replacement
For EVOAQ systems using the basic F7 filter media.
Open Replacement GuidePremium Filter Replacement
For EVOAQ Premium Filter Boxes using PM2.5 primary filter media.
Open Replacement GuideAir Purification Filter Replacement
For EVOAQ Air Purification Boxes and their multi-stage filter media.
Open Replacement GuidePM2.5 vs F7 — what's the difference?
You will still hear ventilation companies talk about F7 filters, but F7 is an older classification from EN 779. The current ISO 16890 approach classifies filters according to their performance against particulate size ranges such as PM1, PM2.5 and PM10.
That matters because PM2.5 describes a particle size range that is directly relevant to fine airborne particulate pollution. It gives a more useful description of what the filter is designed to capture than simply repeating an old F7 label.
EVOAQ's primary PM2.5 media is specified as F7 equivalent. So the advantage is not that the words "PM2.5" magically make a filter better. The advantage is using a current particulate-based classification and designing the filtration around the particles we actually want to remove.
Choose the right secondary filter
HEPA screen
A HEPA screen provides an additional particulate filtration stage after the primary PM2.5 filter. This is a strong choice where the priority is further particle removal.
Activated carbon
Carbon is used for gases and odours rather than simply adding another particulate filter. It can be useful where outdoor odours or other gaseous pollutants are a particular concern.
The important point: filtration is a system, not just a single filter rating. Matching the filter stages to the home's environment gives a better result than choosing the biggest-sounding filter specification.
Filter replacement is designed to be simple
Inspect the filter 6 months after installation, then at least annually.
Replace at least every 2 years, or sooner if the filter is visibly loaded.
Install replacement media in the correct orientation and make sure there are no bypass gaps.
Premium Filter Boxes and Air Purification Boxes are designed so the filter media can be slid out and replaced. Basic F7 filter frames use a taped filter-media arrangement and require a different replacement procedure.
